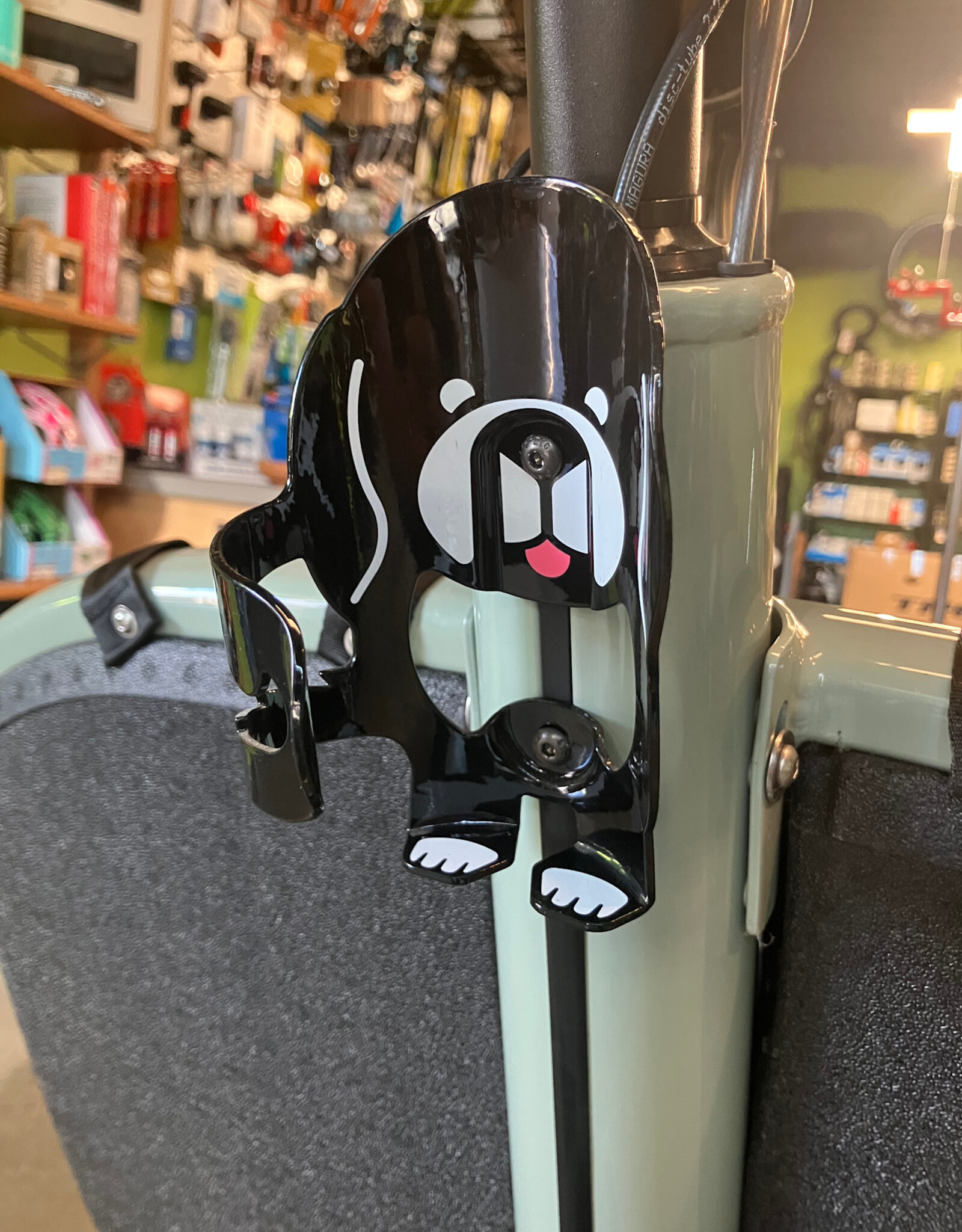

Urban Arrow - Bottle Cage Holder

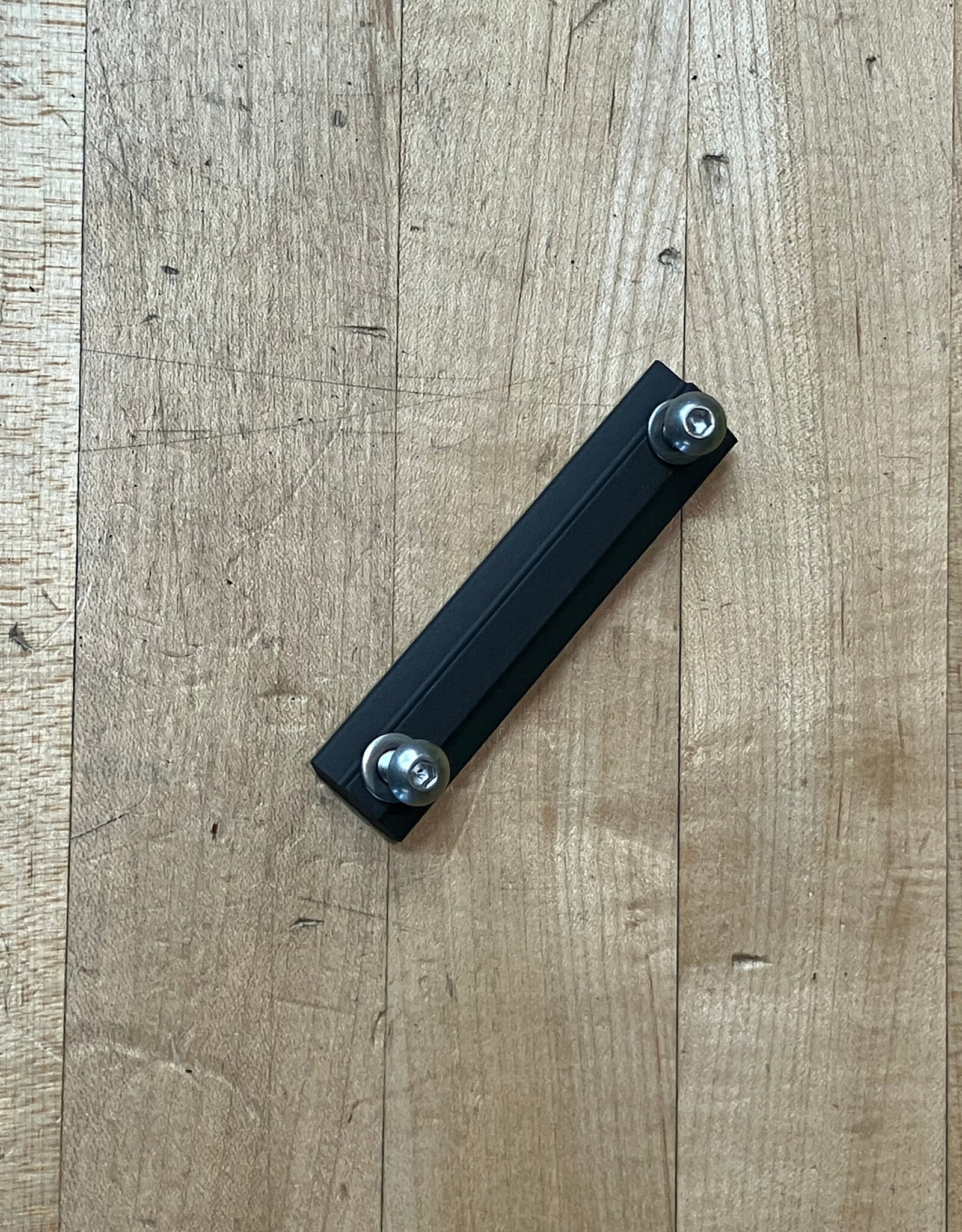

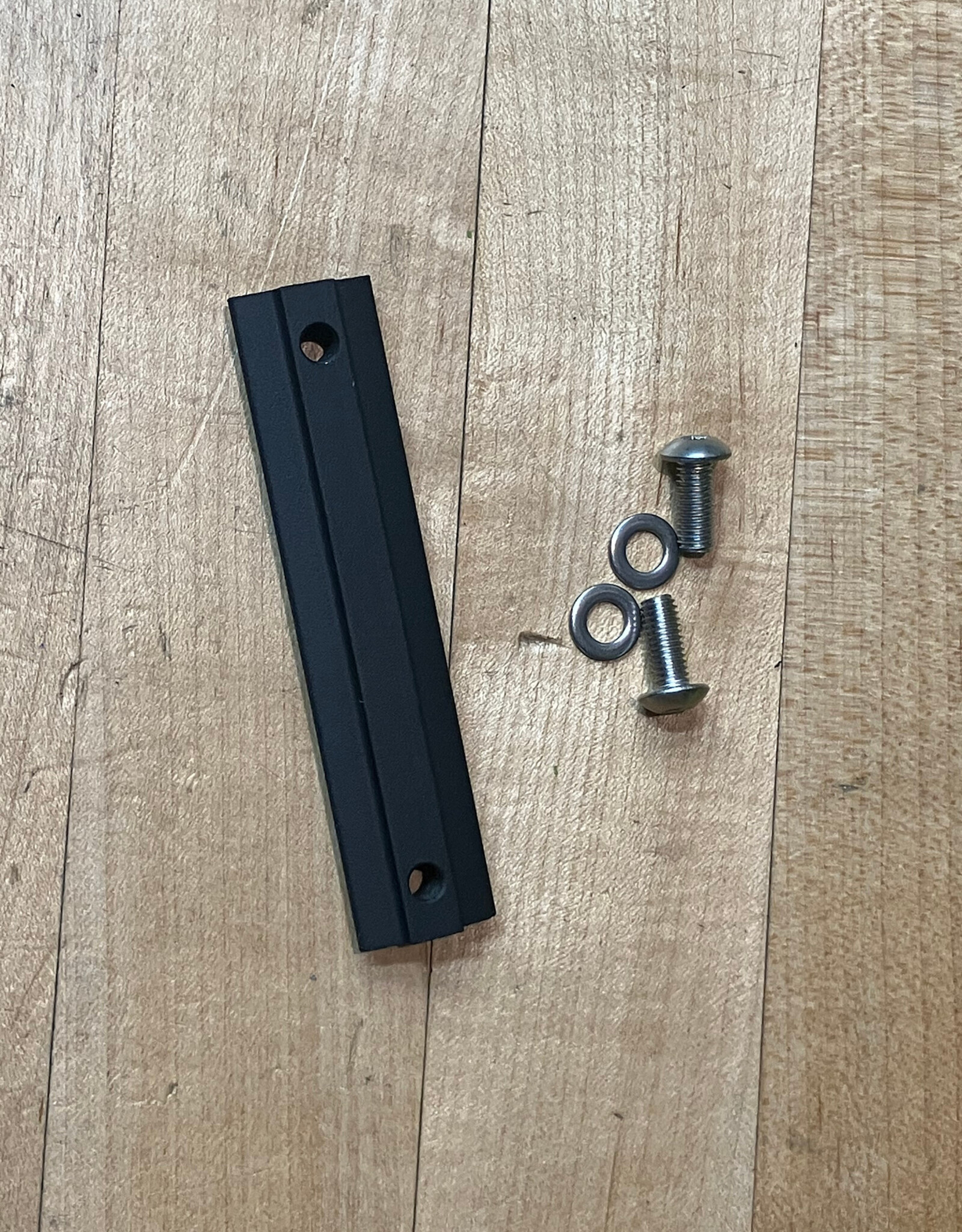

Adapter mount to allow installation of a water bottle cage on Urban Arrow Family bikes from model year 2019 to present.

Easy installation:

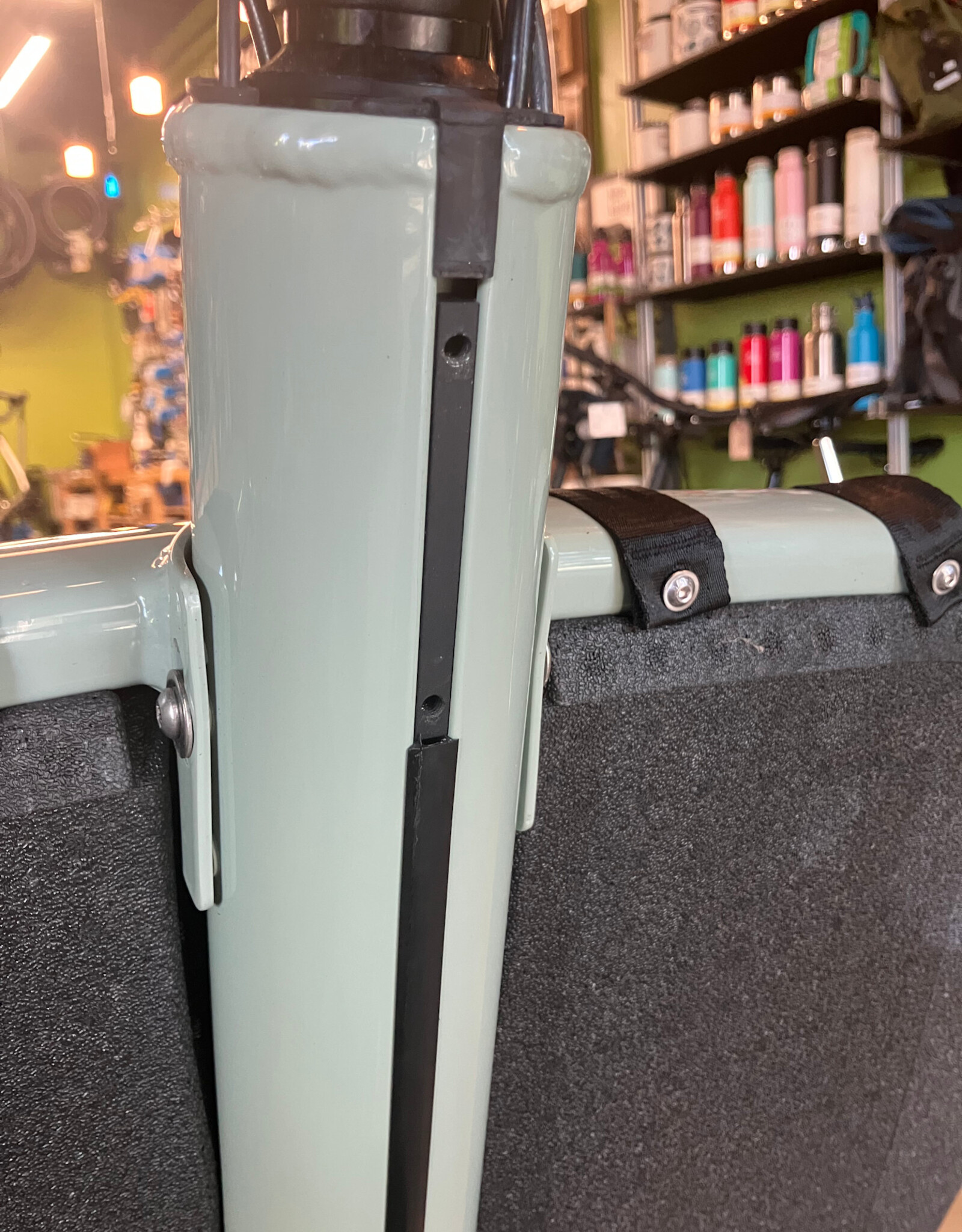

1. remove the rubber cable guide and plastic channel cover with a small flathead screwdriver
2. use the supplied hardware and 3mm Allen key to thread bottle cage to the adapter, only a couple of turns, keep it loose for now (note: the raised narrow portion of the adapter faces out toward the bottle cage)

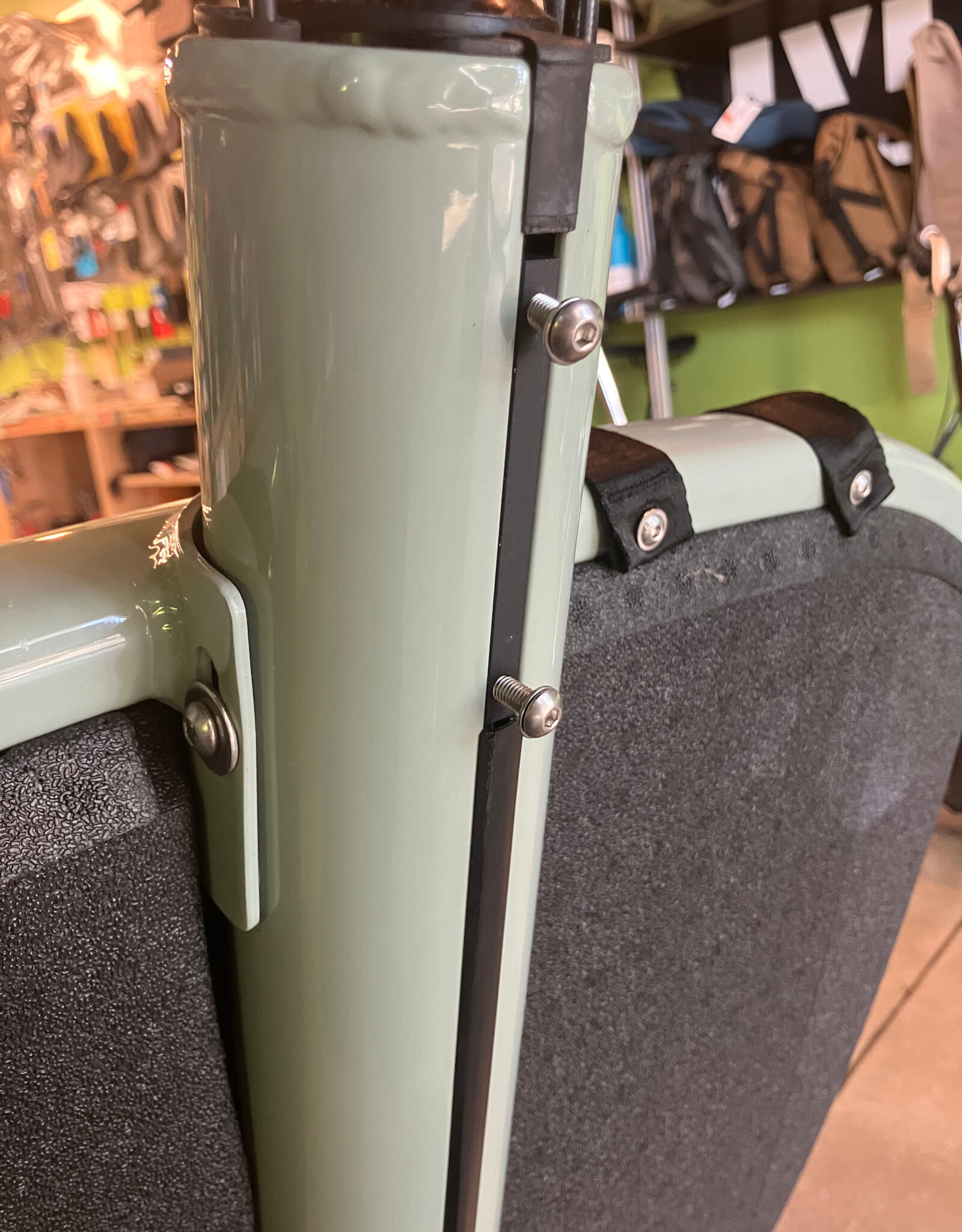

3. slide the adapter + bottle cage into the channel with enough room to reinstall the rubber cable guide  and tighten the screws to hold it in place while you install the cable guide

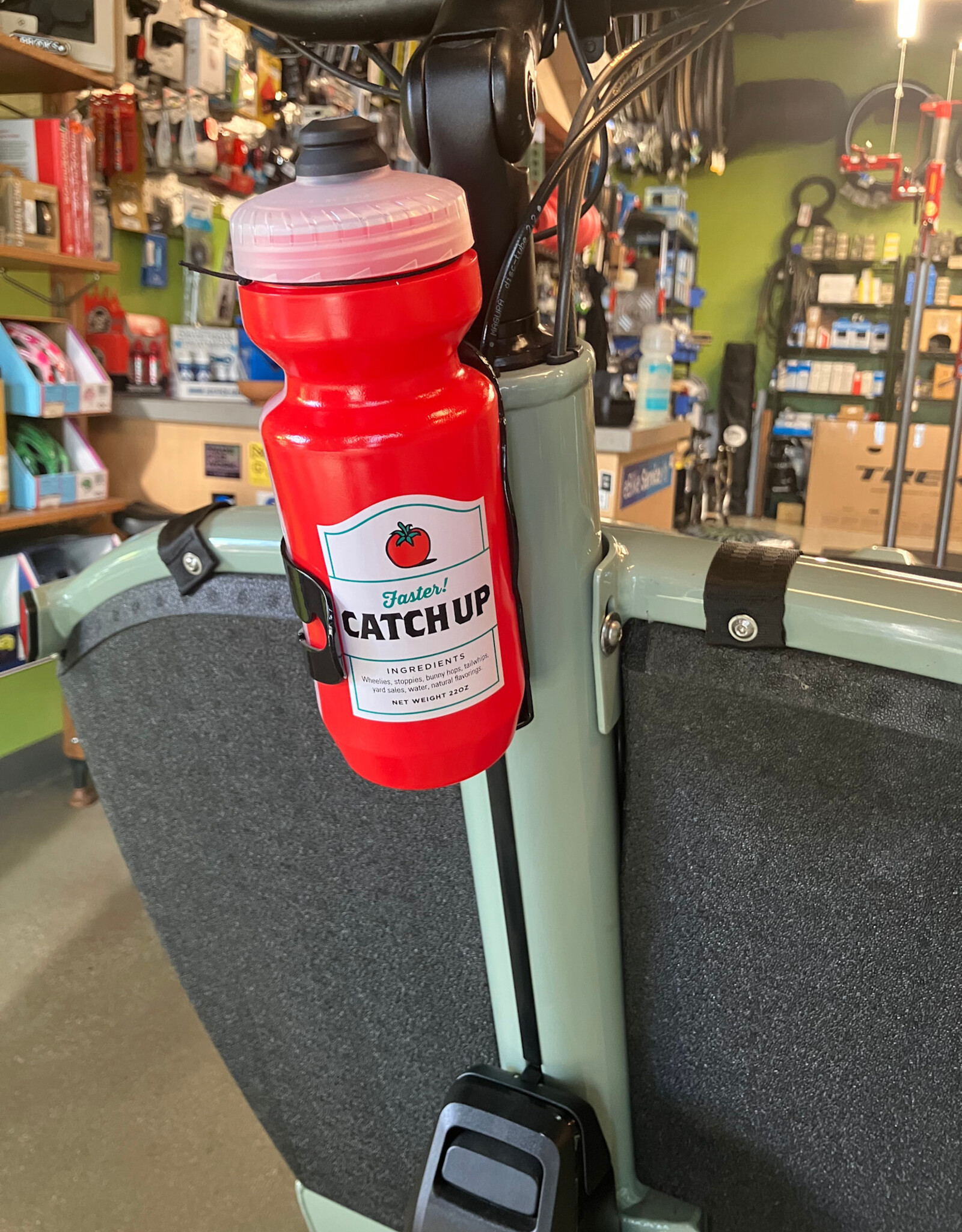

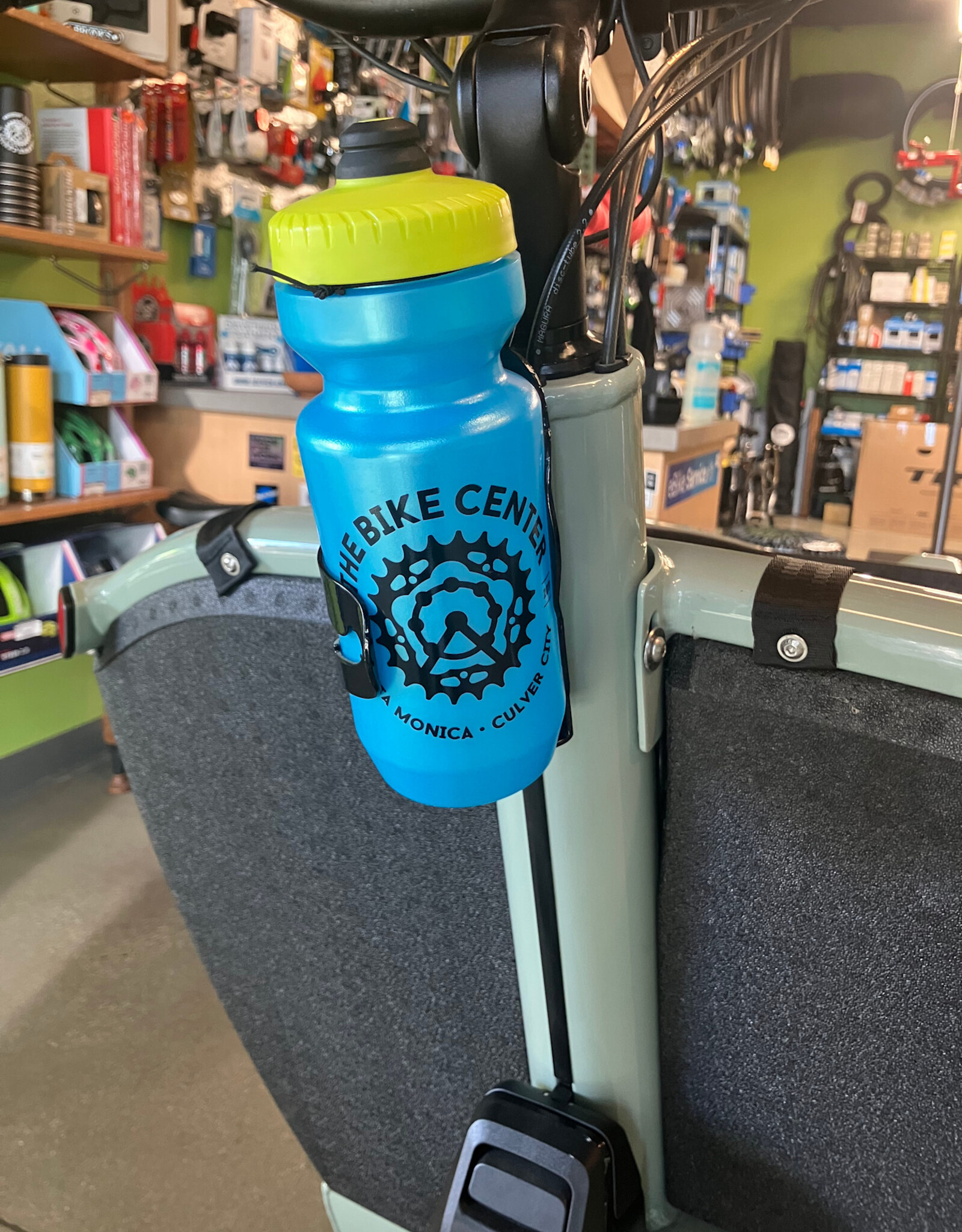

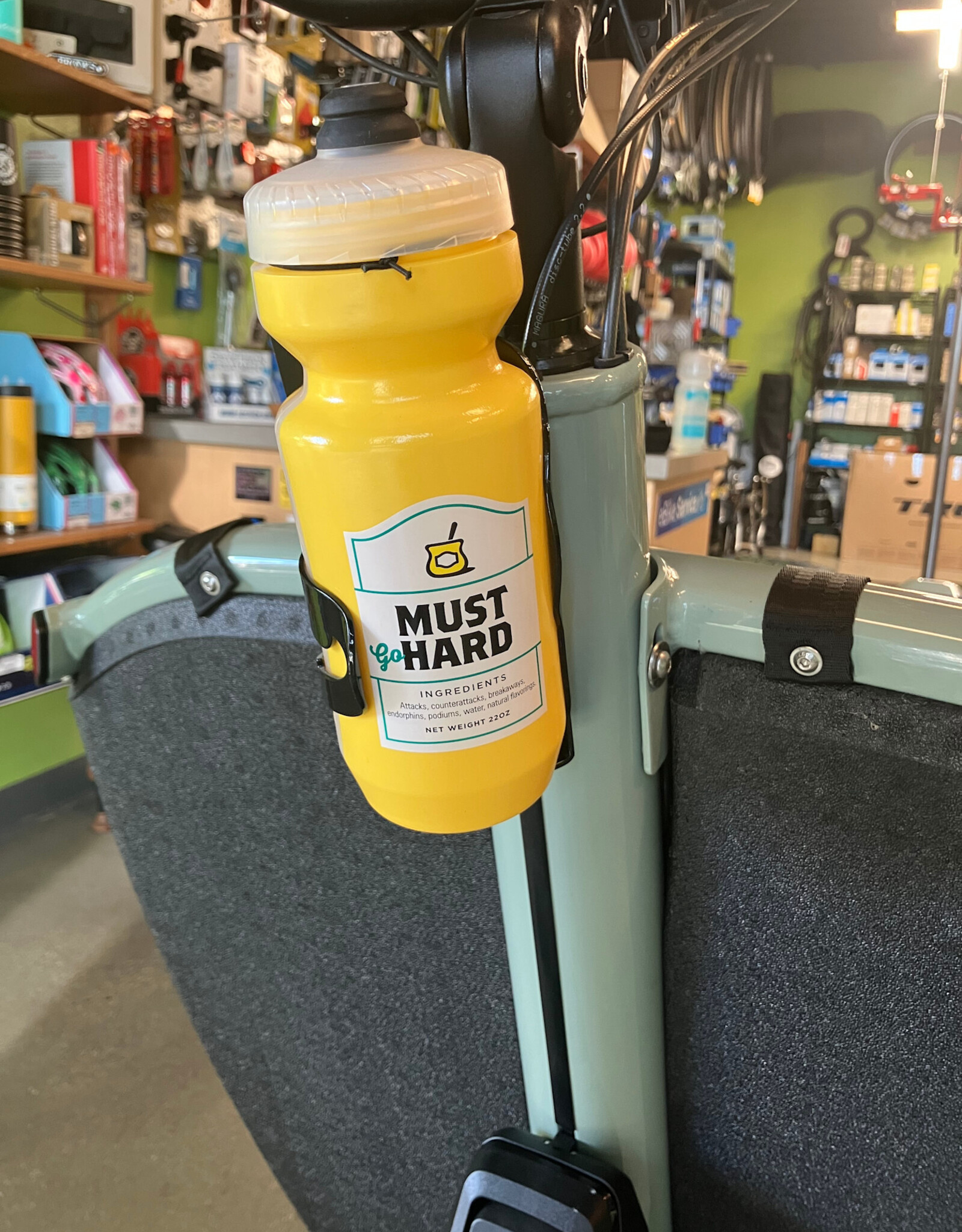

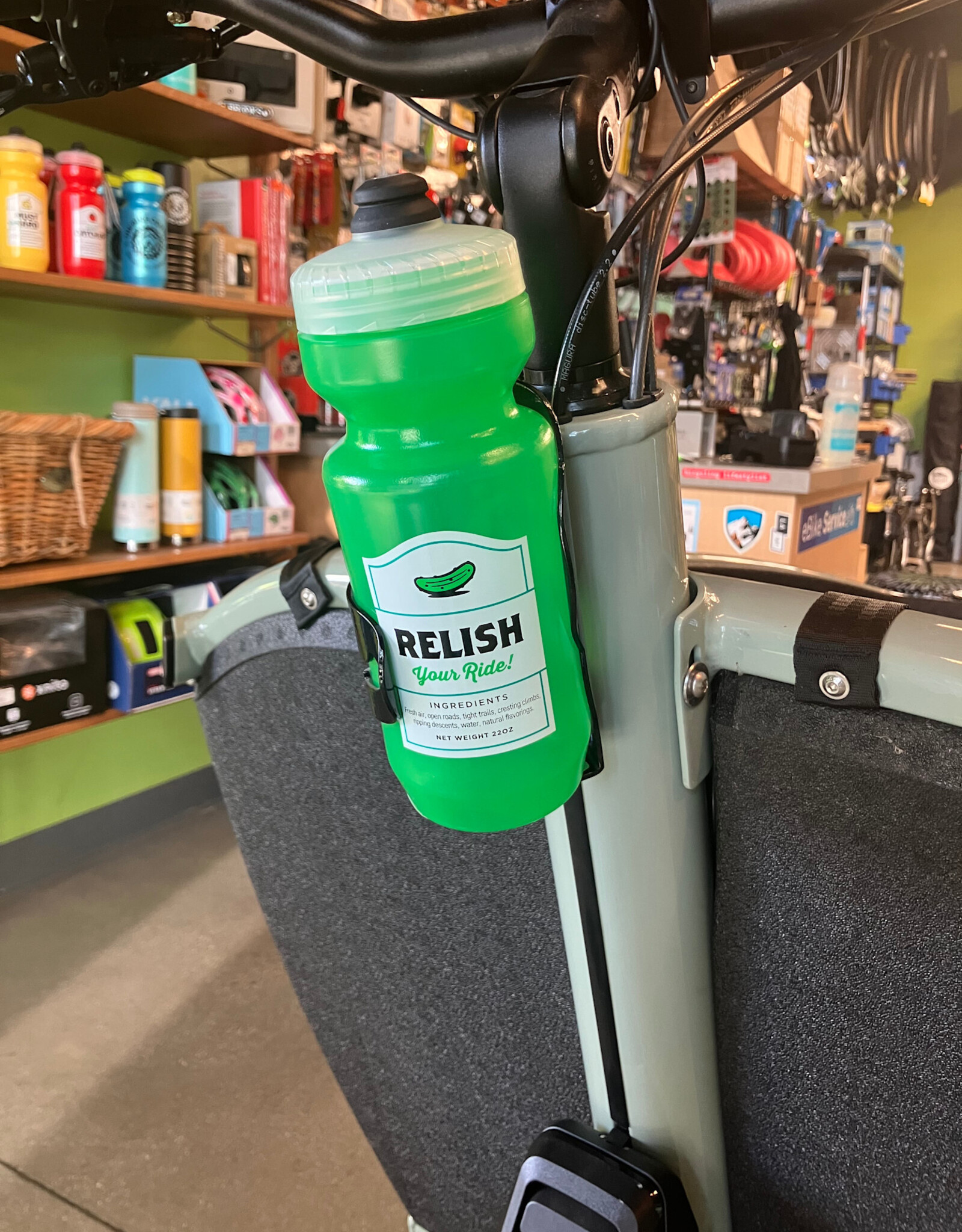

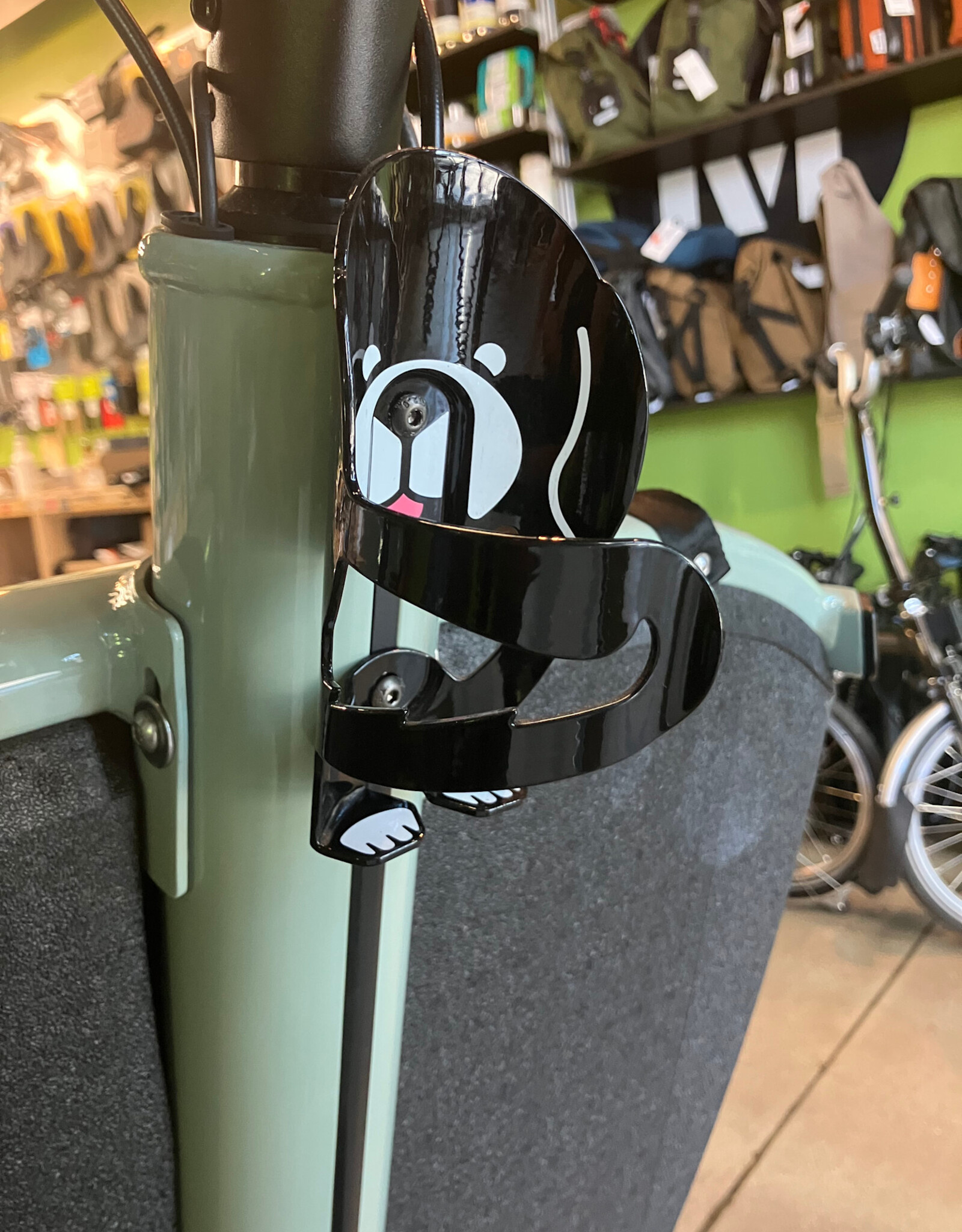

4. now you are ready to position the bottle cage; slide the adapter up to the bottom of the rubber cable guide and tighten both screws securely. Test the height of the bottle cage, most people find this orientation pleasing, but you may want it lower so take it out for a spin and see how it feels before trimming the plastic channel cover.
5. if the final position is with the adapter up against the bottom of the rubber cable guide, then simply cut 80mm from the plastic channel cover and reinstall. All set no need to complete the next step.
6. If the final position is lower on the channel, then you will need to measure the gap between the top of the adapter and the bottom of the rubber cable guide and fill the gap with a small section of the plastic channel cover. Then cut out 80mm from the remaining plastic channel cover, install and that's it.
